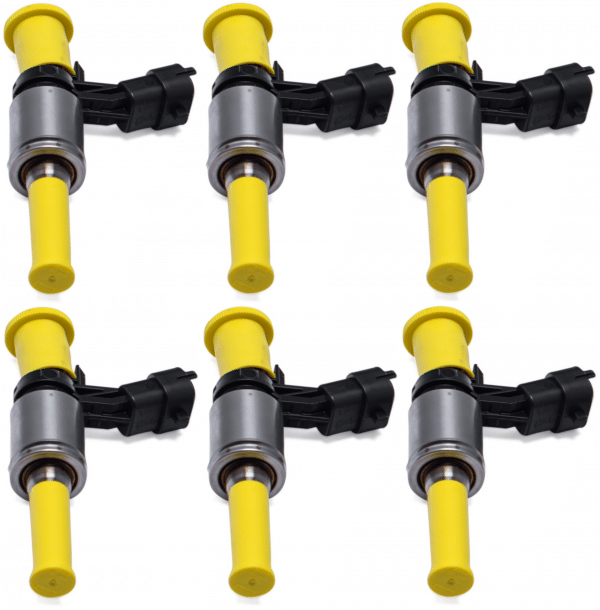

XDI DI Fuel Injectors set for 2017-2020 Gen 2 Ecoboost F-150 and Raptor 3.5L

5 Star Tuning is proud to offer the highest quality fuel injectors on the market.

These XDI DI Fuel Injectors are:

• 2000cc, 50% greaterflow over stock

• E85 Compatible

• OEM Idle Characteristics

• OEM Spray Pattern

Compatible with:

• 2017, 2018, 2019, 2020 Gen 2 Ford F150 and Raptor 3.5L Ecoboost

Our XDI manufactured and tested DI-Injectors are designed for the 2017-2020 Gen 2 3.5L Ecoboost series engines. These injectors supply the required fuel flow for high horsepower applications without the need for auxiliary fuel systems. These injectors are based on the original Bosch injector, which makes them a perfect drop in solution. Most of the ECU Injector characteristics stay the same. Every Injector gets tested at 100bar and 200bar on OEM testing equipment at XDI. Every set gets flow matched to within ±1% at 100bar and 200bar fuel pressure !!! Testing on several fully instrumented engines has shown unequaled results in terms of cylinder distribution, repeatability, and stability at pressures up to 3200psi. Tuning changes required are minimal, offsets and current driver parameters stay the same. The injectors are E85 compatible.

Features:

• 100% true fitment, no adapters needed like on the DW
• 100% compatible with ECU driver, because they are based on the OEM Bosch Core.(the DW is based on F150 Denso core)
• OEM spray pattern, perfect idle, cold start and drivability
• They get tested and flow matched at three different points (08ms-20bar / 10ms-100bar / 6ms-200bar
• They run stable at up to 220bar, linear and no misfire
• Just one label in ECU needs to be changed (injector slope over rail pressure)
• They flow 2000cc/min at 100bar, the DW just flow 1700cc
• They flow 2900cc/min at 200bar, the DW don’t run at all at 200bar



XDI Part #/SKU: XDI-i012-50
