2011-2017 Ford Mustang GT & Boss VMP Performance Odin Supercharged Coyote w/ AC 10-Rib Full-FEAD Kit – 20 Percent OD VMP-SUP034

Odin 10-rib “Full-FEAD” Kit with AC 20% OD for 11-17 Coyote 5.0 L (Mustang and F-150)

This “Full-FEAD” kit is designed for customers that currently have nothing OR want the latest and greatest belt drive parts. All Odin/Loki belt system components and hardware are included with this kit, perfect for customers starting with a used kit or a Stage 3 head unit.

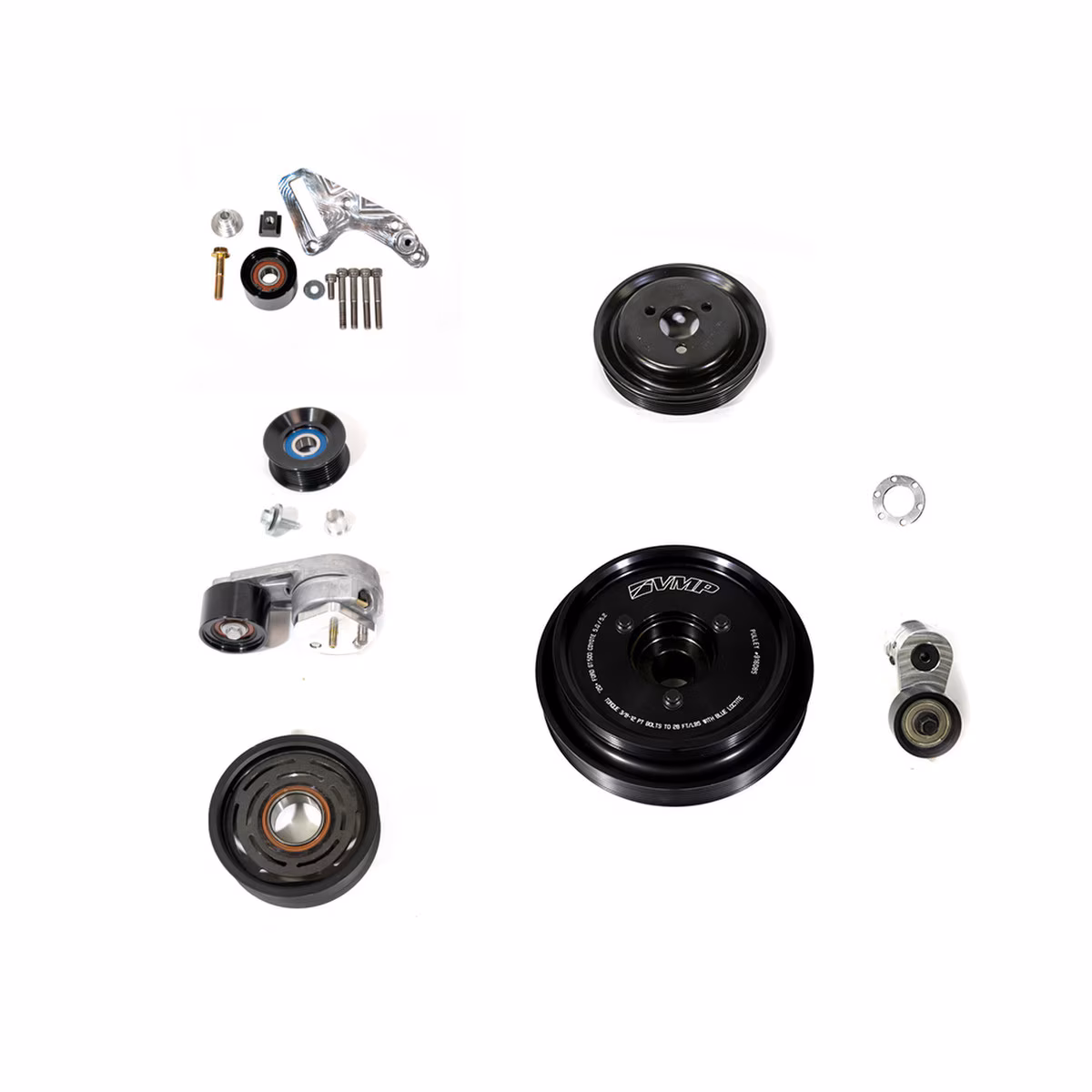

Includes:

• Odin/G3R HD Tensioner VMP-SUT009
• VMP Atlas Bracket VMP-ODT010

Super Low Profile Accessory Belt Tensioner VMP-SUT005

ATI/VMP 20% OD balancer (new version VMP-918078)

10-rib VMP AC Clutch Pulley with Griptec VMP-AC-M11-10

3-bolt Water Pump Pulley with back lip removed VMP-SUP076

Ribbed idler and spacer for front cover VMP-76-8-20-RB & VMP-FSPC-20-8-10RB

• VMP 60 mm double row idler pulley VMP-60-SM-DB (2)
• 4-rib accessory belt
• VMP Odin 10-Rib Pulley Hub Spacer 23.9 mm/.940″ VMP-ODP002

All necessary hardware

**This kit does NOT include an 10-Rib Supercharger Pulley.

With the included spacer all VMP 10-rib pulleys bolt directly onto the Odin supercharger.

Currently available sizes / Boost psi with 20% lower

Griptec:
VMP-24-10-B-GR / 27 psi (Stage 3 only)
VMP-25-10-B-GR / 26 psi (Stage 3 only)
VMP-26-10-B-GR / 25 psi (Stage 3 only)
VMP-27-10-B-GR / 24 psi
VMP-28-10-B-GR / 23 psi
VMP-29-10-B-GR / 21 psi

*Stage 3 ported blowers will make 2 psi over standard Stage 2.  Stage 3 porting is required to make over 24 psi

*The balancer converts to a 4-rib accessory belt (included, for replacements use stock 2020 GT500 Ford KR3Z-8620-B / JK4682 / Bando 4PK1715).  Install belt on front 4-ribs of water pump and alternator pulley.

*Supercharger belt not included

*All parts may be purchased individually using the above PNs

Available VMP 10-rib pulleys:

VMP-36-10-B	VMP 3.6″ 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger
VMP-34-10-B	VMP 3.4″ 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger
VMP-33-10-B	VMP 3.3″ 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger
VMP-32-10-B	VMP 3.2″ 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger
VMP-31-10-B	VMP 3.1″ 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger
VMP-30-10-B	VMP 3.0″ 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger
VMP-29-10-B	VMP 2.9″ 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger
VMP-28-10-B	VMP 2.8″ 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger
VMP-27-10-B	VMP 2.7″ 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger
VMP-26-10-B	VMP 2.6″ 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger
VMP-25-10-B	VMP 2.5″ 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger
VMP-24-10-B	VMP 2.4″ 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger
	Griptec pulleys:
VMP-29-10-B-GR	VMP 2.9″ Griptec 10-rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger
VMP-28-10-B-GR	VMP 2.8″ Griptec 10-rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger
VMP-27-10-B-GR	VMP 2.7″ Griptec 10-rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger
VMP-26-10-B-GR	VMP 2.6″ Griptec 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger
VMP-25-10-B-GR	VMP 2.5″ Griptec 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger
VMP-24-10-B-GR	VMP 2.4″ Griptec 10-Rib Pulley for 5.0 L/5.2 L/5.4 L/5.8 L TVS Supercharger
