2011-2023 5.0L Coyote Engines SPE Motorsport Coyote Carbon Fiber Intake Manifold C100193

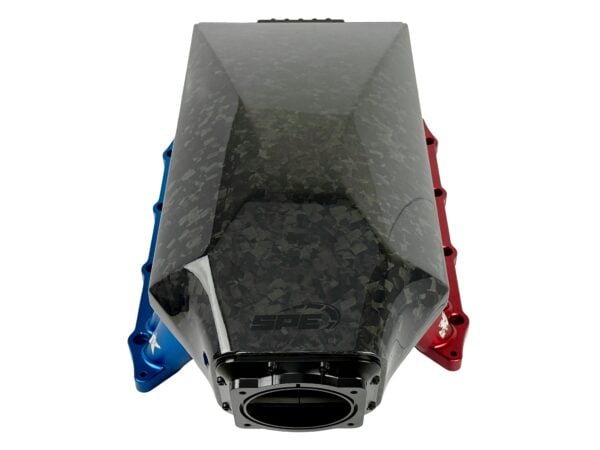

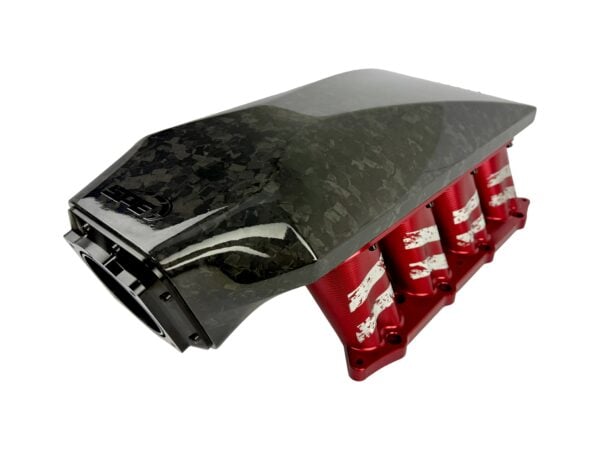

SPE Motorsport Carbon Fiber Intake Manifold- Fits 5.0L Coyote Engines (2011–2023)
After two years of intense development, SPE Motorsport is proud to release the most advanced intake manifold available for the Coyote platform. This isn’t just another pretty carbon plenum it’s a purpose-built, modular system designed to outperform and outlast anything in its class.
Our mono-plenum design coupled with our patent pending tech eliminates the need for epoxy or bonded joints. Instead, every component is 100% bolt-together using precision-machined interfaces and custom Torx-drive titanium hardware. This allows for easy disassembly, future changes, and unmatched serviceability.
At just 15.5 pounds, it weighs much less than the competition:
Plazmaman: 27.5 lbs
Sean’s Custom Alloy: 22.5 lbs
TTR Carbon intake: 20 lbs
This is one of the only aftermarket intake manifolds rated to 130 PSI of operating pressure— built to handle serious boost. It’s topped off with a lifetime warranty and proudly engineered, tested, and manufactured in the USA.
Key Specs:
Billet 5-axis CNC-machined intake runners
Carbon fiber mono-plenum construction
Built-in burst panel for overpressure safety
Optimized runner and plenum volume for boosted applications
130 PSI certified operating pressure
O-ring seals
Custom Torx-drive titanium fasteners
Multiple throttle body options:
Factory Coyote
2020+ GT500
LS 102mm cable style
More to come!
FITS:
2011-2023 Mustang
2016-2020 Mustang GT350
2020-2021 Mustang GT500
2011-2020 F150
