DYNO & STREET PROVEN
LETS PROVE IT
INCREASED HP & TORQUE
Optimized Fuel Efficiency
BETTER THROTTLE RESPONSE
TUNERS WITH CUSTOM TUNES

2017-2020 F150 3.5L V6 Ecoboost SCT X4 Tuner with Choice of 5 Star Custom Tunes 7015

(2 customer reviews)

$799.95

The X4 Performance Programmer boosts your vehicle’s horsepower and torque with preloaded, dyno-tested tunes. Easily modify key parameters, monitor gauges on a customizable display, and unlock your engine’s full potential with custom tunes and 5 Star Tuning options.

Ready to unlock your engine? Get started by selecting an option below

Choose the number of custom tunes for your tuner. Three custom tunes are INCLUDED, specifically tuned for your setup.

Have aftermarket upgrades? Select all applicable upgrades to customize your tunes accordingly. Stock? Skip me.

Select your fuel type for custom tunes. Pick the highest-grade fuel you’ll use to get the best performance.

Questions? Contact our Tuners
Full Installation Guide. Learn more
GAURANTEED SECURE PAYMENTS
SKU: 5ST7015(2017-2020 F150 3.5L V6 Ecoboost) Categories: ,

AREAS WE ADDRESS

Fuel tables are modified for either better economy or all out performance. Depending on your needs is how most tables are set up. We have noticed on the 2017 F150 3.5L EB V6 that the fueling tables are a little rich in their strategies in stock condition and have moderate delay timers set before allowing additional fuel at WOT. However, some fueling delays are ok as they help with economy.

The F150 3.5L EB V6 suffers from poor throttle response down low. A custom calibration will have enhanced improvements in better throttle response, step on go pedal, vehicle will respond quicker…this DBW system is a torque driven system, it works by taking a certain amount of torque via engine and wheel and applies it to what the driver foot say it needs; a better way to explain it is its a torque limiter. It only allows so much torque at a given pedal position. Stock tables are conservative and numb at best and that’s why one would feel sometimes a lag or a goofy pedal with DBW systems. For a 3.5L EB V6 this is one of the most critical areas that must be addressed and modified to generate more torque /hp and throttle response. By reworking the OEM strategies makes your 3.5L EB V6 come to life!

There are normally 3 types of limiters on most vehicles that can be adjusted safely and the F150 3.5L EB is no different. RPM, MPH (106) and transmission. MPH limiter is raised to 200 MPH. Output shaft limiters are slightly increased to a safe limit in our calibrations. We also leave the Fail Safe factory limiters enabled and in place that Ford has set from the factory. So in all temperature conditions if your vehicle needs to dial back some power on its own it can. This ensures a safe calibration for the life of your vehicle.

Can be increased in most RPM areas for improved Torque and HP. Running a higher Octane fuel will net more power and economy from some timing/spark advancement. However, with a 3.5L EB v6 even running 87 Octane fuel can yield some respectable gains in power and torque over stock with the use of no additional timing advance (aka factory tables). The knock sensors and strategy we leave in place just like factory on the 3.5L EB v6 are very good in that they can advance and retard timing while you drive. For best delivered timing to achieve best power and torque a good quality fuel is needed like 91 / 93 octane.

In all F150 3.5L EB V6 vehicles the Torque Converter strategies can be reworked to lock up sooner and stay locked longer at light cruising speeds to also help with economy…A locked converter is power to the ground. The new 10 speed brings new meaning to locking a converter, part of the clunk in and out of gears is Ford trying to lock all gears starting with 2nd gear. The converter strategies in our calibrations will have great emphasis on quick converter lock ups at the right mph in the right gears (key word) and rpm as to take advantage of the low torque that is available from the 3.5L EB V6 engine. End result will be smooth transition from gear to gear with no goofy clunking.

The 10 speed transmission that comes standard with the F150 3.5L V6 is a big improvement in driver controls over prior 6 speed transmissions. However, there are still some significant benefits to be had re-calibrating normal daily shift strategies. DAILY MODE We have noticed that while in normal everyday mode that the transmission will move into 8th,9th, 10th gears really quickly around town with speeds as low as 42 mph this really lugs the engine and when trying to accelerate there is a pretty good delay to build boost and either downshift or accelerate. Also Ford is skip shifting in normal mode as well. We can correct this by moving some shift strategies patterns around in all gears. Our calibrations will have emphasis on shifting at the right mph and rpm as to take advantage of the low torque that is available from the 3.5L EB V6 engine, while maintaining great fuel economy and power to accelerate when needed.

TOW/HAUL Mode Coasting or slowing down the downshifts don’t command soon enough to keep the RPM’s up in torque range and when back in throttle multiple downshifts may occur. Also keep in mind engine braking; a V6 engine has less braking that Ford’s past V8 engines, so a quick downshift for braking is required for owners that are going to tow heavy. We have re-calibrated tow/haul mode strategies that enhances keeping the engine RPM’s elevated to take advantage of the torque band which will require less downshifting by optimizing gears. We have also enhanced the down shift patterns to allow better engine braking with this V6 engine. All of our calibrations have this new tow/haul strategy except economy mode calibrations.

SPORT Mode is a fun mode in factory form but does not have much use in a daily drive except wide open throttle. We have an enhance shift pattern that allows you to take advantage of this sport mode to make use of it during your daily drive when you want both sport and fun with keeping some of your drive ability in mind. Upper gears 8th, 9th, 10th are much more driver friendly after tuning being able to get into these gears at an except-able MPH is key.

Shift pressures can be increased and slip timers can be decreased to help keep trans temperatures down and give the truck or any vehicle a better overall feel. In a F150 3.5L V6 shifts are quick and slightly firmer most of the delay between shifts are eliminated when using custom tunes.

Custom calibrations allow for many choices when it comes to tuning your vehicle. 5 Star Tuning will be offering these popular choices for the new F150 3.5L V6. These enhanced calibrations can increase economy and are completely safe to tow/haul your vehicles manufactured recommend weight rating in any mode. Enhanced Safe Power – Great Drive Ability – Good Economy is our goals with all of our custom maps. Calibrations will enhance some if not all of these areas depending on Map/Tune developed. ● fuel ● boost ● drive by wire ● grill shutters ● cold/hot start idle ● idle drive ● variable cam ● shifting sport mode ● converter sport mode ● shifting normal mode ● converter normal mode ● shifting Tow/Haul mode ● converter Tow/Haul mode ● timing ● cruise/speed control ● variable speed fan ● speed limiters ● tire size (HP MPVI only) ● axle ratio (HP MPVI only)

Tunes Available:
  • 85+ Economy
  • |
  • 85-89 Performance
  • |
  • 90-94 Performance
  • |
  • 85-89 Performance/Tow
  • |
  • 90-94 Performance/Tow

CALIBRATIONS that are available for the F150 3.5L V6 are:

PERFORMANCE / TOW CALIBRATION
These are our number 1 tunes! They have great power and great drive ability while daily driving or towing factory weight ratings. Best all around tune for the F150 EcoBoost. (Can Tow Factory Weight Ratings with these Maps/Tunes)
85-87 Octane Performance/Tow
88-89 Octane Performance/Tow
90-91 Octane Performance/Tow
92-93 Octane Performance/Tow

PERFORMANCE ONLY
These tunes are about straight line Max Performance. Slightly firmer shifting and quick turbo response. Fun tune to drive daily.
85-87 Octane Performance
90-91 Octane Performance
92-93 Octane Performance

ECONOMY CALIBRATIONS
These tunes are for all out Economy and can Tow Factory Weight Ratings . Works well in an heavy in town environment on a daily basis or open highway.
85-87 Octane Economy
88-89 Octane Economy
90-91 Octane Economy
92-93 Octane Economy

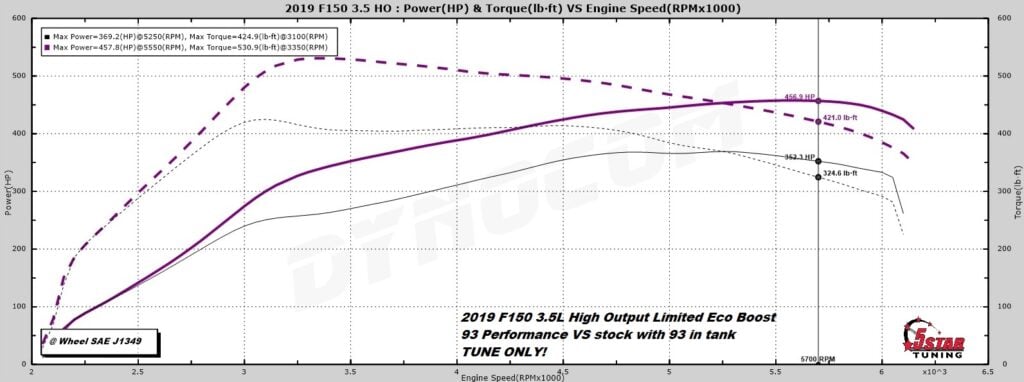

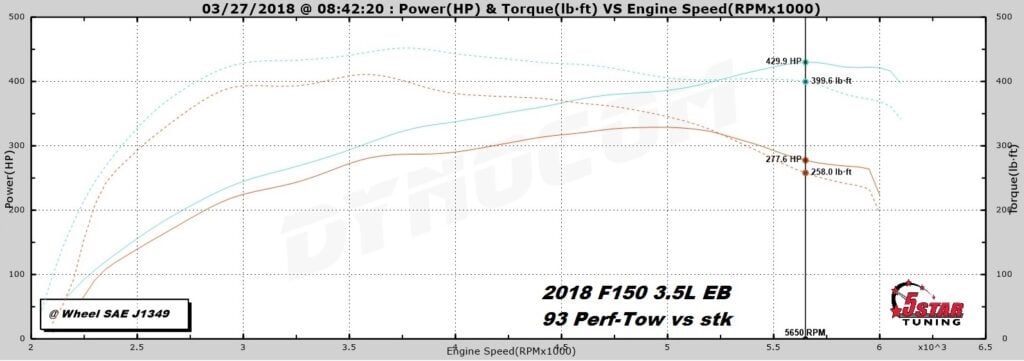

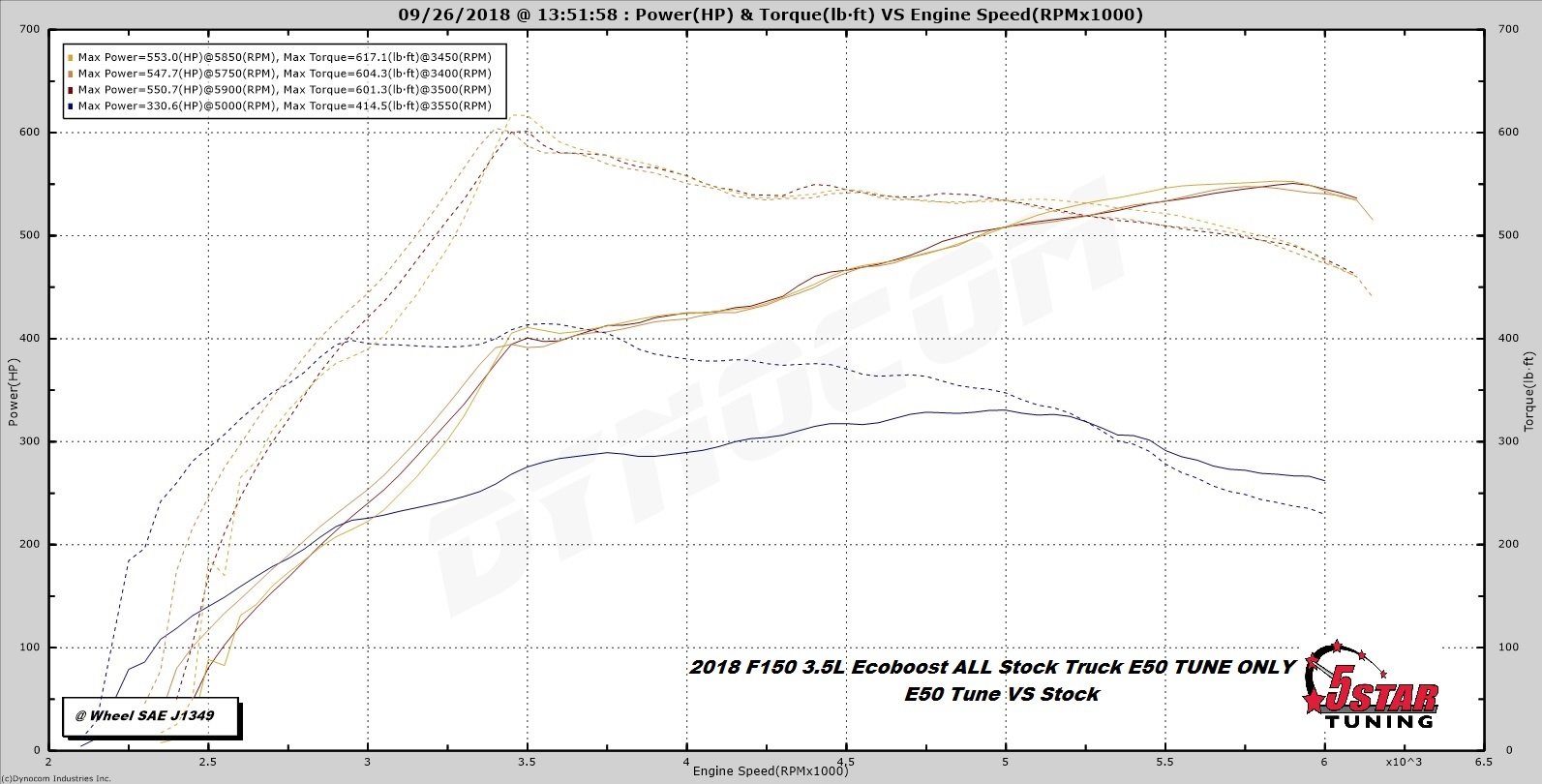

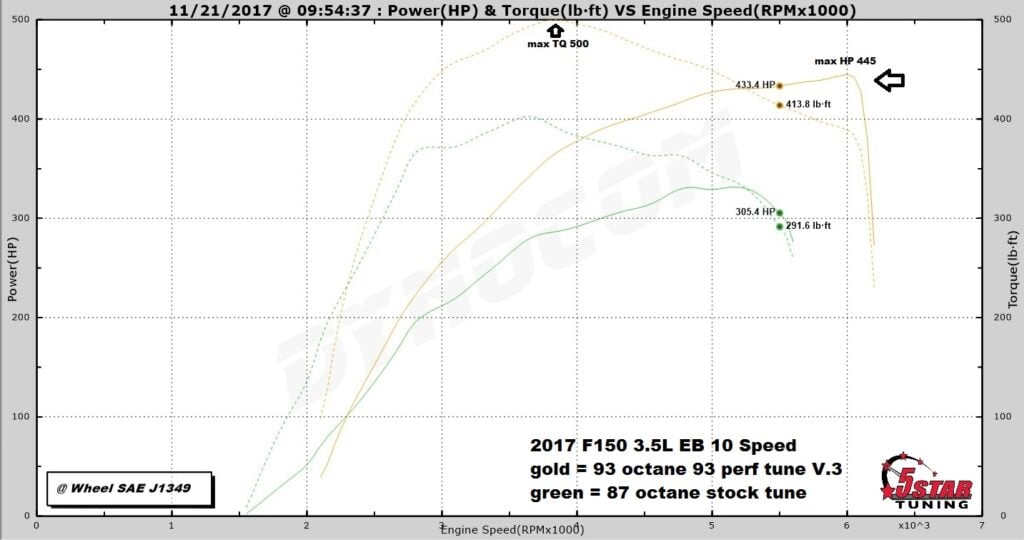

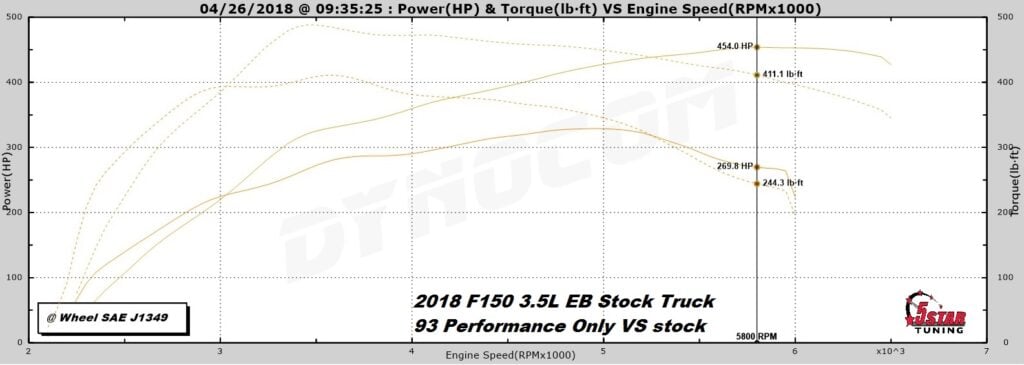

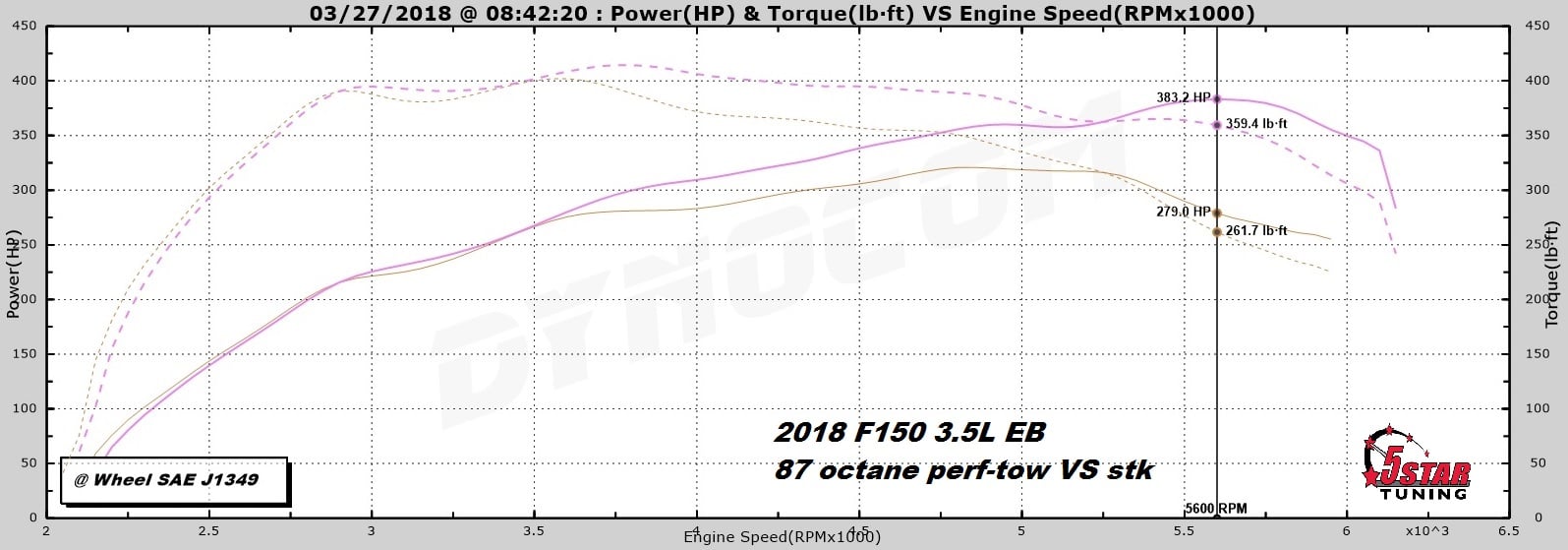

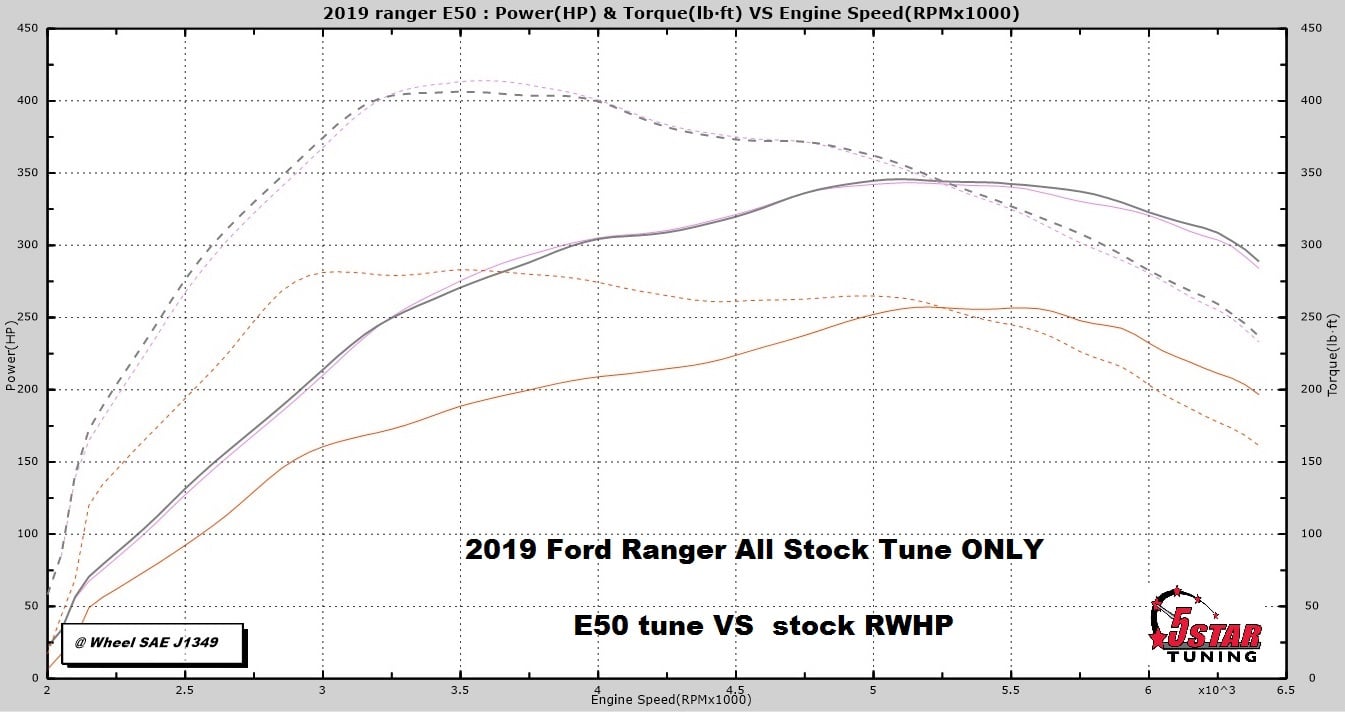

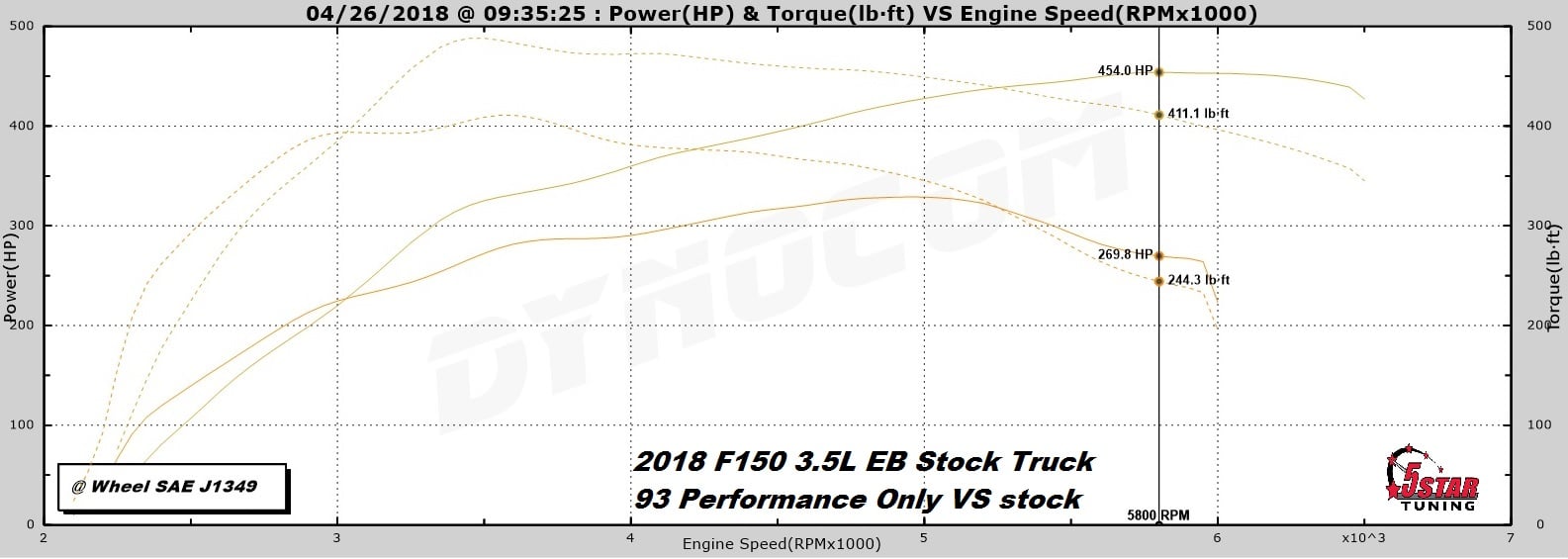

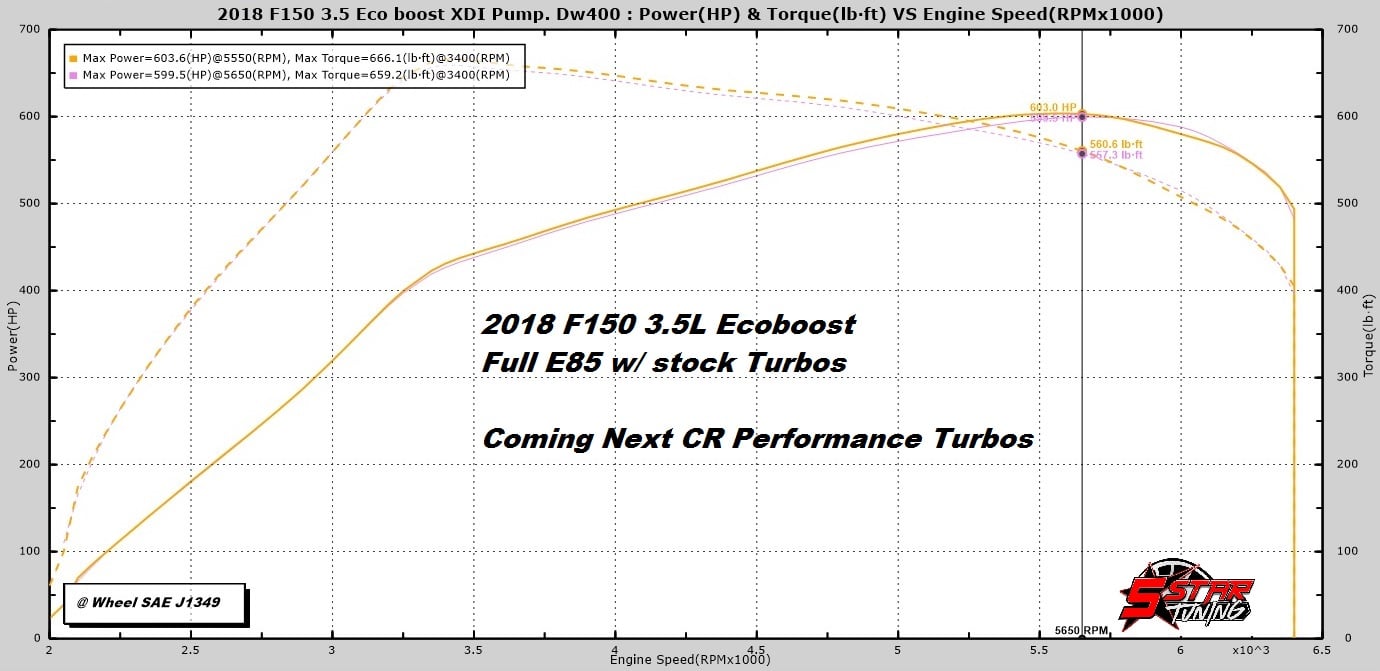

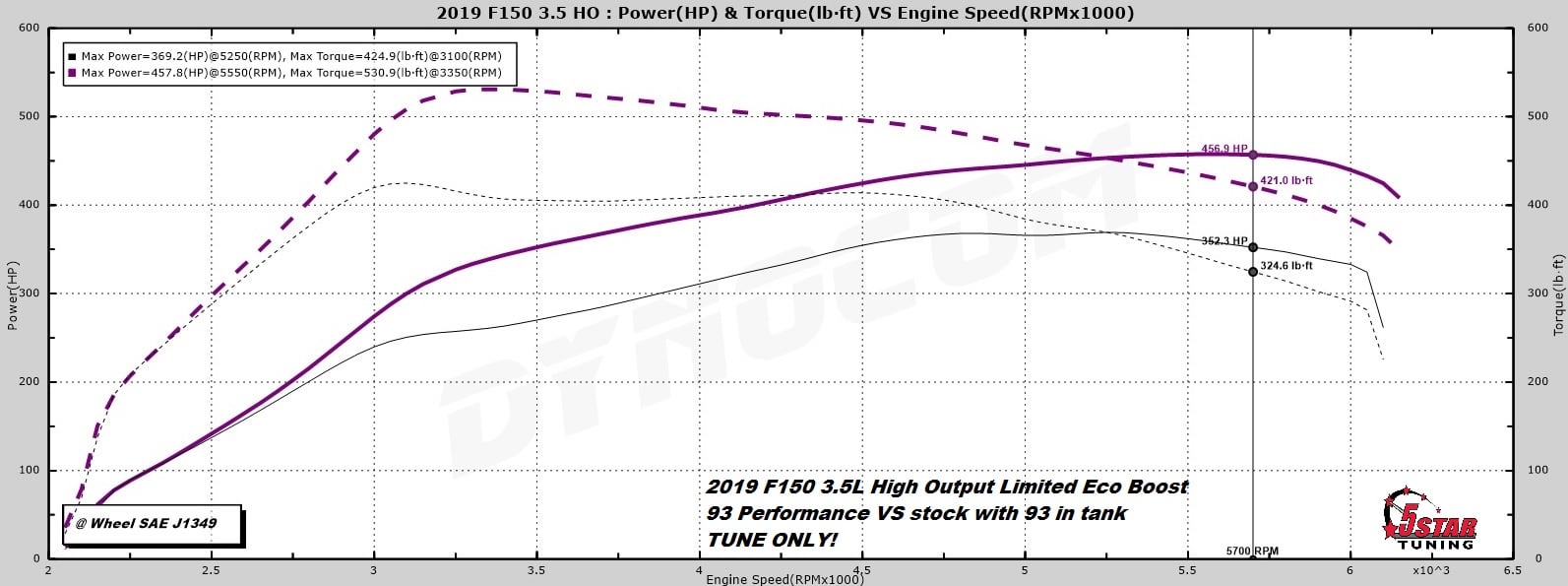

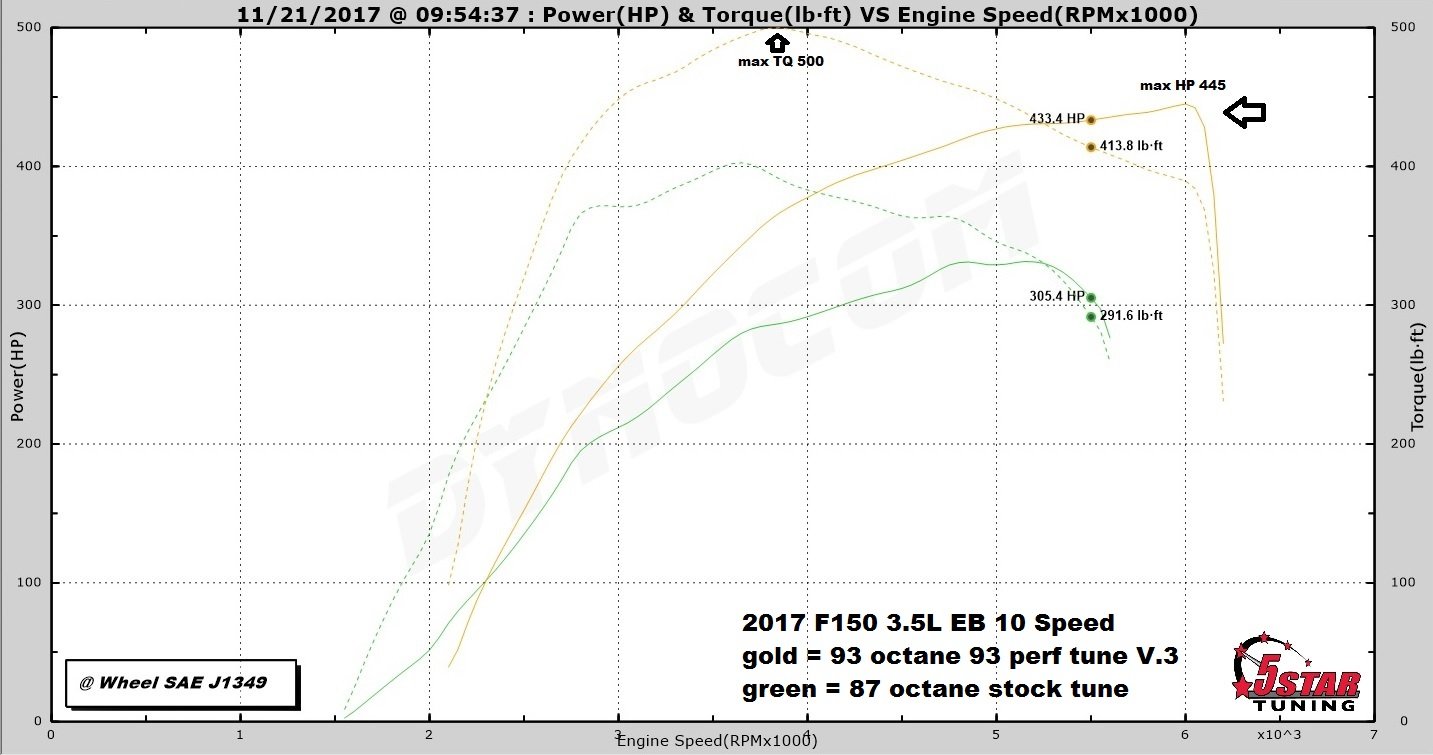

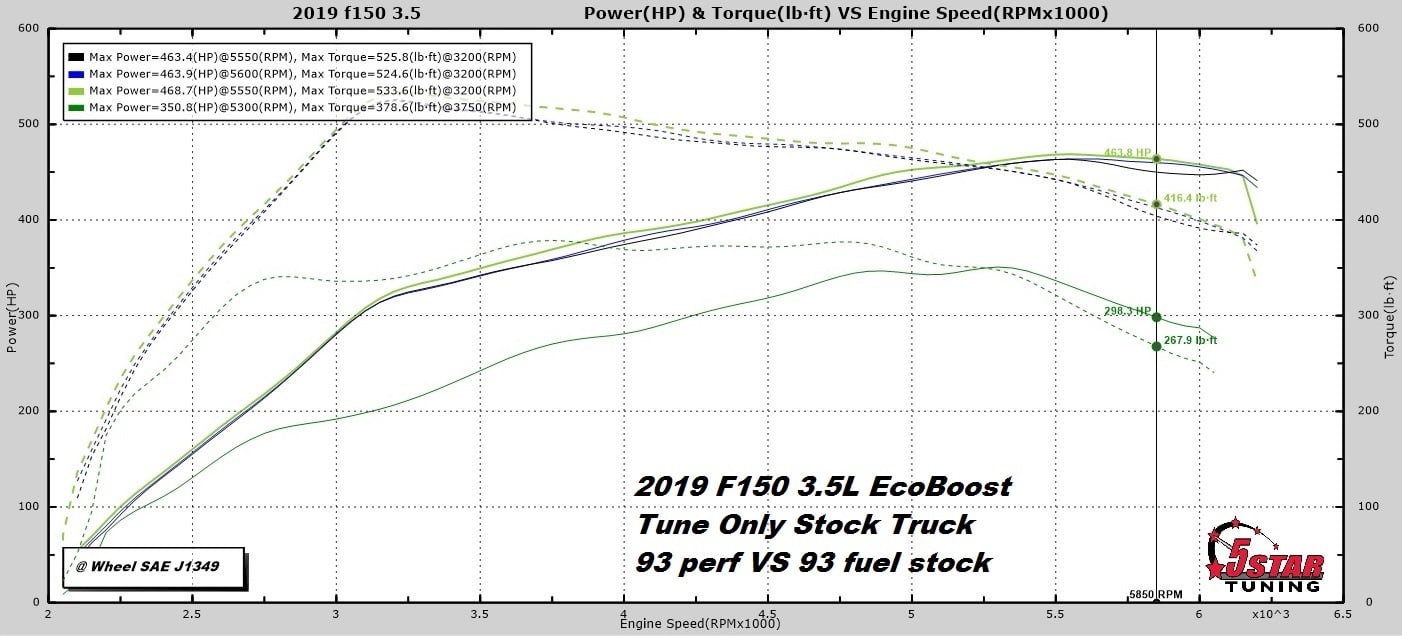

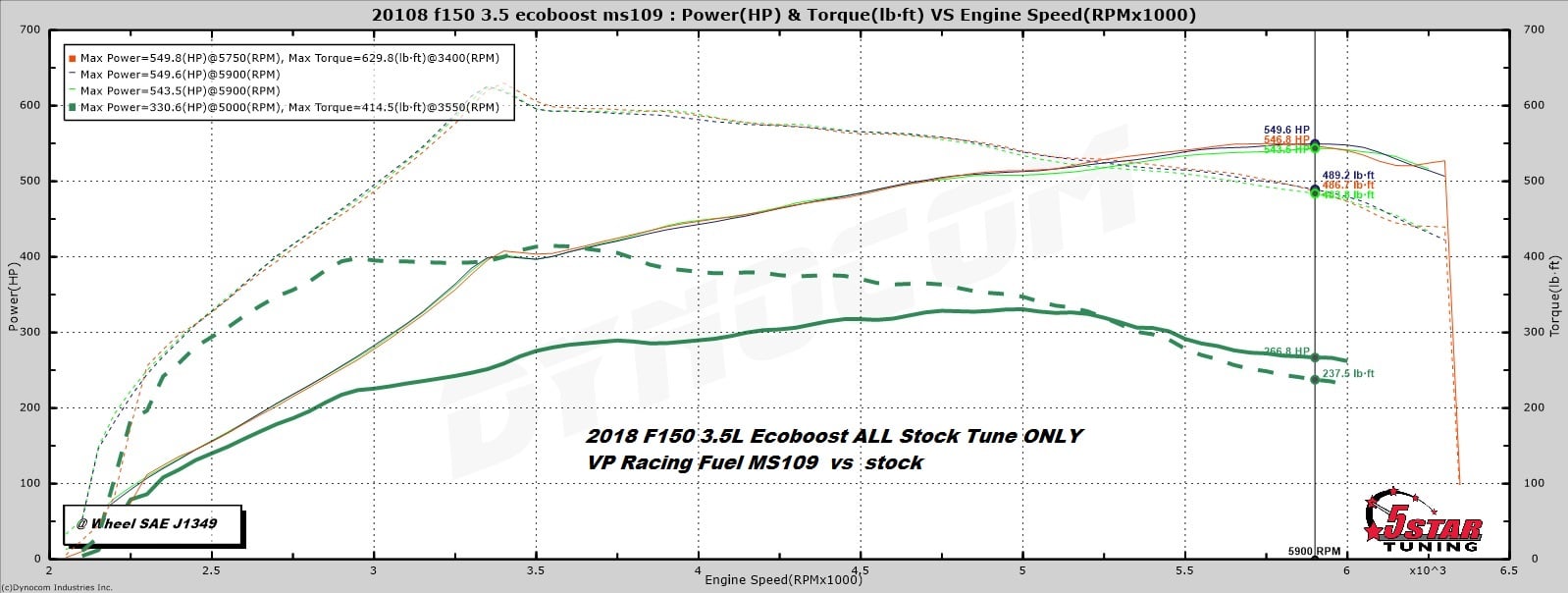

DYNO RESULTS
YouTube video
STEP-BY-STEP

TUNER & TUNES PROCESS

1

Order & Receive Your Tuner

Place an order for your tuner with custom tunes from 5 Star Tuning today. Once your order is confirmed, we’ll promptly send you a blank tuner device that’s ready to be personalized just for your vehicle.

2

ECU Strategy & Calibration Form

Connect your tuner to your vehicle to pull the ECU strategy code and ECU SWPN (if needed). Then, complete our simple calibration form with your vehicle details, and we’ll create the perfect custom tune.

3

Download & Install Your Custom Tune

Once we’ve created your custom tune, we’ll email you the file. Simply download it to your PC, use the device updater software to load the tune into your tuner, and then install it into your vehicle for an optimized performance experience. If you need help, visit our support page. Now you’re ready to hit the road with a fully optimized tune!

Calibration forms Tuner/Tunes installation guide
WHY CHOOSE

5 STAR TUNING

Let our valuable customers do the talking..

went above and beyond

5 star rating
5 star rating
5 star rating
5 star rating
5 star rating
Super fast shipping! The eco and performance tunes were top notch. I’m getting almost 30mpg in a modded mustang GT! Special thanks to Will on the support team, who personally helped me set-up and install the tunes. 5star went above and beyond!
Johnny B.
Verified Owner

runs and shifts smoother

5 star rating
5 star rating
5 star rating
5 star rating
5 star rating
Purchased 3 custom tunes. Installed one and truck responds quicker and runs and shifts smoother. Great job and special thanks to Richie for all you help.
Pete Young
Verified Owner

immediate improvement

5 star rating
5 star rating
5 star rating
5 star rating
5 star rating
I ordered a custom tune from 5star and let me tell you that was night and day difference from a pre loaded tune! Super happy with the whole experience with 5star! Quick to email back even through the holiday schedules!
Daniel S.
Verified Owner

Very nice smooth power

5 star rating
5 star rating
5 star rating
5 star rating
5 star rating
Tune was prepared and emailed in a couple business days. I got the 93 performance tune. Shifts are nice and smooth, fuel economy is on the rise looks like 19ish. A lot of smooth power without the engine noise through speakers. Start/stop delete. Very nice smooth power, I am impressed.
Richie Post
Verified Owner

Frequently asked questions

From the factory, your vehicle’s computer is calibrated for the masses, designed with the average driver in mind, not the performance enthusiast. This not only leaves valuable horsepower & torque hidden inside your vehicle, but it also makes for a mediocre driving experience. Our tuners unlock your vehicle’s hidden performance by re-calibrating your vehicle’s PCM for maximum horsepower & torque, increase throttle response, clean shift points, increased efficiency and the best driving experience possible.

Our tunes bring the most potential out of your vehicle by adjusting your fuel tables, drive by wire, timing, torque converter, shift strategies and shift pressures. Visit our Custom Tuning Info section for more detailed information for your specific vehicle.

Our entire lineup of tunes for your vehicle can be found by visiting our calibration request form. All of our current tunes for each application can be found under our custom tune dropdown menu.

We are your industry leader in Ford and GM truck, car, SUV and motorhome tuning. We create and offer the most refined tunes on the market for your application. Rather than offering you a one-sized fits all approach we custom tailor all your tunes to your specific needs. These needs can be more power, more torque, tuning for your current or future modifications or simply getting the best driving experience from your vehicle. In addition to our refined approach to tuning vehicle, we ensure your vehicles reliability will never be compromised.

For starters, this device is extremely versatile. In addition to being a flash programmer it can perform many other functions. It can easily load store up to 10 of your 5 Star Tuning custom tunes. Your device can also be used to monitor your vehicle engine parameters. (Parameters can range from engine RPM, Speed, Coolant Temperatures and many more). The tuner can also be used to datalog your vehicle to further dial in current or future modifications. This flash programmer will also store a copy of your factory tune and your vehicle can be returned to stock at anytime.

Have you added a new mod to your truck, car, SUV or motorhome and wish to maximize your application’s performance? For all our Tunes for Life members, these modifications are free for the life of your vehicle while you own it. This will ensure that your vehicle run properly with our dyno and street tested tunes give you the most horsepower, torque, and most efficient performance possible with your newest addition. For more information on what qualifies for free tune upgrades visit https://5startuning.com/free-tunes-life/.

Unleash Your Vehicle’s True Potential with the SCT X4 Power Flash Tuner

Transform your driving experience with the SCT Performance X4/SF4 Power Flash Tuner, the ultimate tool for optimizing machine performance. Whether you’re looking for maximum horsepower and torque, better fuel efficiency, or a custom performance tune, the X4 Tuner offers cutting-edge technology that unlocks your vehicle’s true capabilities.

With 5 Star Tuning options, the SCT X4 enhances power and optimizes fuel economy, giving you the best of both worlds—powerful performance and improved mileage.

Optimize Performance with DYNO-Proven Tunes
The X4 Power Flash Tuner arrives pre-loaded with DYNO-Proven tune files that dramatically increase horsepower and torque. From off-road adventures to highway cruising, the SCT X4 delivers the perfect blend of power when you need it most, allowing your vehicle to perform at its peak.

Real-Time Vehicle Data at Your Fingertips
With a large backlit display, the SCT X4 Power Flash makes it easy to read real-time vehicle data, including popular sensor data like EGT (Exhaust Gas Temperature), Air/Fuel Ratio, and other 0-5 volt sources. Monitor your vehicle’s performance and make necessary adjustments to achieve optimal results—all with one powerful device.

Custom Tunes, Tailored for Your Ride
The X4 Power Flash Tuner stores up to 10 custom tune files, allowing you to work with a local SCT Custom Tuning Dealer for personalized, performance-enhancing tunes. Whether you’re looking for better throttle response, towing power, or overall performance gains, the X4’s ability to store and recall multiple custom tunes ensures you get the exact performance you’re after.

Key Features of the SCT X4 Power Flash Tuner:

  • Stores up to 10 custom tune files
  • Full-color LCD display for easy navigation and readability
  • High-speed data logging/monitoring for real-time performance tracking
  • Reads and clears DTC trouble codes for easy diagnostics
  • Dual analog inputs to monitor additional vehicle sensors
  • Supports most popular vehicles, including trucks, cars, and performance vehicles
  • Quick and easy installation with a simple plug-and-play interface
  • Easy restoration back to stock settings if needed
  • User-adjustable vehicle parameters, including speed limits, shift points, and more
  • USB interface cable included for easy connectivity and updates

Expand Your Tuning Possibilities
With the SCT X4 Power Flash Tuner, the possibilities for performance enhancement are virtually limitless. Whether you’re tuning for more power, better fuel economy, or specific vehicle adjustments, this high-performance tuner gives you everything you need to unlock your vehicle’s full potential.

The X4 tuner also gives you the flexibility to work with 5 Star Tuning specialists to create the perfect custom tune tailored to your specific needs. Achieve the perfect balance of performance and efficiency, and push your vehicle to new heights with SCT’s powerful and intuitive Power Flash Tuner.

Unlock Big Power in a Small Package
Experience the full power of your vehicle with the SCT X4 Power Flash Tuner—a compact device packed with powerful features to enhance performance, optimize efficiency, and deliver real-time insights. Whether you’re aiming to increase horsepower, torque, or improve fuel consumption, the SCT X4 ensures you get the best possible performance.

Get ready to experience big power in a small package with the SCT X4 Power Flash Tuner, and take control of your vehicle’s tuning like never before.

Weight 2 lbs
Dimensions 7 × 7 × 4 in
brand

2 reviews for 2017-2020 F150 3.5L V6 Ecoboost SCT X4 Tuner with Choice of 5 Star Custom Tunes 7015

1-2 of 2 reviews
  1. SC
    Samuel C.
    Verified owner

    Really good customer service and Nice overall experience

  2. SH
    Scott H.
    Verified owner

    Unbelievable

Add a review
Currently, we are not accepting new reviews

Step 1: Ordering Your Tuner
– Select the tuner that best fits your needs and place your order online or via phone.
– If your ECU strategy code matches Ford’s most current calibration, we will tune your vehicle based on your submitted information.
– If your ECU strategy is outdated, a blank device will be sent to you.

Step 2: Retrieving Your ECU Strategy Code
– Upon receiving your blank tuner, connect it to your vehicle’s OBD-II port.
– Turn off all accessories such as the radio, heat, and A/C.
– Select Vehicle Info on your device:
– X4 and BDX: Press the center button.
– LiveWire, iTSX, and GTX: Press Select on the screen.

Step 3: Recording Your ECU Strategy Code
– Write down your ECU Strategy Code or ECU SWPN Part Number based on your vehicle:
– 1996–2014 vehicles: Strategy code is listed under ECU Strategy.
– 2015+ vehicles: Both ECU Strategy and ECU SWPN are required.
– 2011+ 6.7L Ford Diesel applications: Provide ECU Strategy, ECU SWPN, TCU Strategy, and TCU SWPN.
– Other diesel applications: Provide ECU Strategy and TCU Strategy codes.

Step 4: Submitting Your Vehicle Information
– Select Exit and unplug your device.
– Email your strategy code(s) to [email protected] or submit them via our Calibration Request Form:
👉 https://5startuning.com/5-star-tuning-calibration-request/ (This is where you select your tunes)

Step 5: Downloading Your Custom Tunes
– Once your custom tunes are ready, we’ll email you a link to our Google Drive where you can download them:
– .cef files for SCT/Bully Dog devices
– .bct files for Bully Dog GT devices
– Need assistance? Visit our Support Page or call (843) 536-1244.

Step 6: Loading and Flashing Your Custom Tune
– Load the custom tunes onto your device.
– Plug the tuner back into your vehicle’s OBD-II port.
– Select Program Vehicle and choose the custom tune you want to install.
– Follow the on-screen prompts to complete the tuning process.

🚗 You’re all set! Your vehicle is now tuned with a 5 Star Custom Tune. 🚀

What Is the Process With PCM-F0-MG1-U?
HP Tuners is pleased to now offer an upgrade service for the MG1 PCM found in 2021-2022 Ford F-150 trucks powered by the 3.5L and 2.7L EcoBoost V6 or 5.0L V8 gas engine. This service enables full functionality of VCM Suite software custom tuning using an RTD+ or newer generation interface. This one-time upgrade service upgrades your original Ford MG1 PCM requiring you to remove the original PCM from your truck and send it to our headquarters for servicing (see shipping information below). After upgrading, we’ll ship it back to you and you’ll have full access to calibrate, log, and scan via the OBDII port using the latest version of VCM Suite.

No relearns/reprogramming required (see important notes):
No IMMO relearn*
No crank relearn*
*As long as the PCM is installed back into the same vehicle it came from.

Ford MG1 PCM Service:
PCM (Ford MG1) License for tuning: (4) Universal Credits (Included with the purchase of 5 Star Tuning RTD+ or 5 Star Tuning email tunes)

Important Notes:
This service is required to tune 2021-2022 F-150 trucks with the 3.5L EcoBoost/2.7L EcoBoost/5.0L gas engine and MG1CS036 PCM using VCM Editor.
This is a send-in upgrade service that requires the original PCM to be removed from the vehicle and sent to HP Tuners for servicing.
Expect 1-3 business days for servicing (not including shipping times).
PCMs with broken tabs or connectors WILL NOT be accepted for upgrades. No exceptions. Please be careful when removing your PCM.
This service only upgrades your original PCM for tuning, it does not reprogram your PCM for a different VIN. If you intend to send HP Tuners a spare PCM, it will be returned to you with the same programming as it was received and may not operate in your Ford vehicle without additional programming by a Ford dealer.
Your MG1 core must be fully functional with no physical or internal damage.
No other tuning or calibration tools can be used with the PCM (including dealer reflash tools).
VCM Scanner, Dealer Diagnostic, and other diagnostic tools will continue to function normally.

How It Works:
Step 1: Once you’ve confirmed your vehicle’s support (2021-2022 Ford F-150 3.5L EcoBoost/2.7L EcoBoost/5.0L with MG1CS036 PCM), purchase this service.
Step 2: After placing your order, you will receive an email with a shipping form and shipping information. You can also find this form and address here. Fill out this form with the necessary information.
Step 3: Carefully remove the PCM from your vehicle and securely package it to ship to HP Tuners. Place your completed shipping form in the box. Feel free to use any shipping carrier you prefer.
Step 4: Write your order number on the outside of the shipping box.
Step 5: Ship your PCM to HP Tuners. The shipping address can be found on this page and in the email discussed in Step 2. Shipping costs to and from HP Tuners are the responsibility of the customer. The shipping charge at checkout only covers return shipping.
Step 6: HP Tuners will upgrade your PCM for tuning. Then, we’ll ship it back to you (return shipping costs are paid by the customer at checkout). This service requires 1-3 business days to complete (excluding shipping times).
Step 7: Once you receive your upgraded PCM, install it back into your vehicle and start tuning! There are no relearns or reprogramming required as long as the PCM returns to the same vehicle it came from.

Shipping Address for PCM Upgrade:
HP Tuners, LLC
ATT: Ford MG1 PCM Service
[YOUR ORDER NUMBER]
700 Eastwood Ln
Buffalo Grove, IL 60089
Please allow for 1-3 business days for servicing (not including shipping times).
After purchasing this service, please fill out the shipping form and place it in your shipping box. Please also write your order number on the outside of your shipping box where it is visible.
PRINT SHIPPING FORM
  NOTE: Customers are responsible for shipping costs when sending HP Tuners your PCM/PCM/TCM. The shipping charge at checkout only covers returning your control module after modification. Feel free to use any shipping carrier you prefer to ship your controller to HP Tuners.
  NOTE: Any hardware ordered with this service will be shipping along with your modified PCM. To avoid delays, please order the hardware separately.
Disclaimers:
These PCM services are completed at the owner’s risk. HP Tuners will not be responsible for the vehicle, its powertrain, or electronics, nor how the PCM is used, calibrated, and its functionality.
Due to the factory location of the PCM in the vehicle, all PCMs will exhibit signs of weathering and wear, which is completely normal.
Should you experience any issues with your PCM, please submit a ticket to our support team for assistance on how to proceed.

*** NOTE: Wi-Fi is required to read and write to your vehicle. Ensure you have a strong Wi-Fi connection and your Windows laptop (required) battery is charged or that your laptop is currently charging.***

You will need RTD Flasher Software: https://files.hptuners.com/RTD%20Flasher/RTD%20Flasher.msi

Step 1: Open RTD Flasher Software
1. After installing RTD Flasher, open the software on your computer.
2. Connect your RTD/RTD+ device to your vehicle’s OBD-II port.
3. Using the provided USB cable:
– Plug the USB-C (smaller side) into the RTD/RTD+ device.
– Plug the other end into a USB slot on your computer.
4. Turn your vehicle to the ON position (DO NOT START THE VEHICLE).
– For push-button start vehicles: Press the start button once WITHOUT pressing the brake pedal.

Step 2: Read Vehicle Information
1. In RTD Flasher, select the Read Vehicle option at the top.
– Icon: 📖 (Book with a green arrow pointing up).
2. Click Gather Information.
3. Depending on your vehicle, you will see one of two options:
– Vehicles with 1 Module (Controls both engine & transmission):
– Select Read Entire.
– Vehicles with 2 Modules (Separate engine & transmission controllers):
– Select Read Entire for both modules.
– Chevrolet Vehicles (3 Controllers):
– Select Read Entire for the top 2 controllers.
– Set the third controller to Do Not Read using the dropdown menu.
4. After confirming your selection, click Read to begin.
– This process may take up to 20 minutes.
– A loading bar will display progress.
5. If prompted, cycle the key as instructed.
6. Once completed, save the stock file as:
– FirstName LastName stockfile (e.g., JohnDoe_StockFile).
– Save it somewhere easy to find, like your desktop.
7. Email your stock file to: 📩 [email protected], If you have not yet submitted your vehicle details and tune selection, complete the Calibration Request Form 👉 https://5startuning.com/5-star-tuning-calibration-request/ (this is where you select your tunes). Call us at (843) 536-1244 if you have problems or visit our Support Page.

Step 3: Download & Load Custom Tunes
1. Once you receive your custom tunes via email, download and save them in an easy-to-find folder on your computer.
2. Open RTD Flasher and connect your RTD/RTD+ device to your OBD-II port and computer.
3. In RTD Flasher, go to:
– Help Menu → Resync Interface
– This will add the necessary credits for licensing your vehicle.
– Once completed, click Close.

Step 4: Flash Your 5 Star Tune
1. Click the Open File option (Folder icon or go to File → Open File).
2. Select the tune file you want to use.
3. Turn the key to the ON position (DO NOT START THE VEHICLE).
4. Click the Write Icon (📖 Book with a red arrow pointing down).
5. A new window will appear to license your vehicle:
– Click Show License Option.
– Select Specific Controllers and click Commit to License.
6. In the Flashing Window:
– Ensure all dropdowns are set to Write Calibration.
– Click Write to begin flashing.
7. When prompted, cycle the key.
8. Once you see “Flash Completed”, your 5 Star custom tune is successfully installed! ✅

Step 1: Set Up Your Avid Tuner
– Connect to Wi-Fi
– Power up your Avid Tuner via USB-C or by plugging it into your vehicle’s OBD-II port.
– Navigate to Wi-Fi Settings.
– Select your 2.4 GHz Wi-Fi network and enter the password.
– If using a mobile hotspot, enable Maximize Compatibility in your phone’s hotspot settings.
– Update Your Avid Tuner
– To ensure your device has the latest features and compatibility updates:
– Navigate to Settings > Update.
– Follow the on-screen prompts to install updates.
– Keep the device powered and close to Wi-Fi for a smooth update process.

Step 2: Retrieve Your ECU Strategy Code
– Plug your Avid Tuner into your vehicle’s OBD-II port.
– Open the ARC Software on your PC (if using a computer).
– Select Read Vehicle Information to retrieve the ECU strategy code and any additional necessary data:
– ECU Strategy (1996+ vehicles)
– ECU SWPN (2015+ vehicles)
– TCU Strategy & SWPN (2011+ 6.7L Ford Diesel)
– Save or write down these details.

Step 3: Submit Your ECU Information
Email your strategy code to [email protected] or submit it via our Calibration Request Form:
👉 https://5startuning.com/5-star-tuning-calibration-request/
After submission, our team will create a custom tune and send you a link to download it.

Step 5: Retrieve and Upload Your Custom Tune
– Download Your Tune
– Once your custom tune is ready, you will receive a link to Google Drive to download the files.
– Save the tune file on your PC.
– Sync Files to Your Avid Tuner
– Power on your Avid Tuner and connect it to Wi-Fi.
– Navigate to Sync in the menu.
– Locate your tune files and highlight each file individually.
– Once all desired files are selected, press Sync to transfer them to your device.
– Manage Device Files
– Under the Manage tab, you can organize your saved files.
– Delete old or unnecessary files if needed.

Step 6: Flash Your Vehicle with 5 Star Custom Tunes
– With the Avid Tuner powered on and loaded with your custom tune, connect it to your vehicle’s OBD-II port.
– Open the ARC Software and select Flash Vehicle.
– Choose the custom tune you want to install and follow the on-screen instructions.
– Make sure your vehicle ignition is ON, but the engine is NOT running during flashing.
– Follow any key cycle instructions if prompted.

🚀 Your vehicle is now tuned with a 5 Star Custom Tune! 🚀

How Long Does Installation Take? The installation will take approximately 5-10 minutes for SCT, around 30 for HP.

Do I Need A Shop To Install? The installation process of the tuner is simple and can be performed by anyone. No tools are required for the installation.

What If I Have Other Technical Questions? We can always be reached at (843) 536-1244 or via email at [email protected] for questions on concerns on the tuning process. We also feature a support page with information and videos pertaining to loading your custom tunes, updating your device, installation, etc at https://5startuning.com/support/.

Note: SCT’s software is only compatible with Microsoft’s Windows operating systems. For OS other than Windows, we recommend the SCT/Bully Dog/5 Star Tuning The Bully Dog BDX will support custom tuning via Wi-Fi. *** FOR HP RTD TUNERS: Wi-Fi is required to read and write to your vehicle. Ensure you have a strong Wi-Fi connection and your Windows laptop (required) battery is charged or that your laptop is currently charging.

COMPLIANCE WARNING
By purchasing this tuner or performance modification, you acknowledge responsibility for ensuring compliance with all applicable laws and regulations and understand that 5 Star Tuning is not liable for any violations or emissions-related issues; this product is not legal for use in California.

TUNERS

EMAIL TUNES
