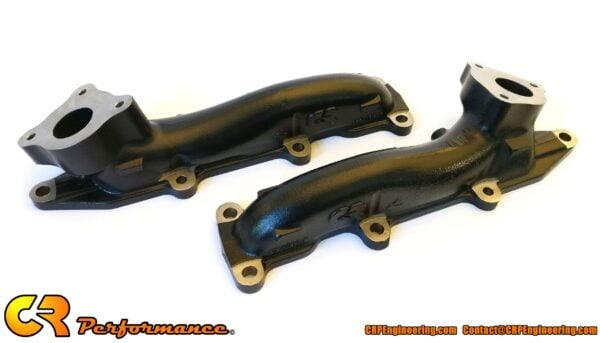

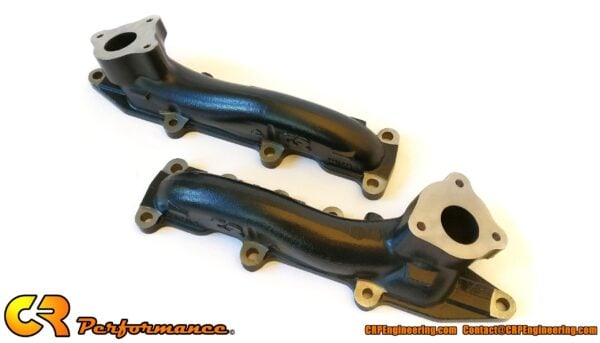

2013-2016 F150 3.5L EcoBoost CRP Full-Bore Ported Exhaust Manifolds 5001011

2013-2016 F150 3.5L EcoBoost CRP Full-Bore Ported Exhaust Manifolds 5001011

$549.95

Description

High performance larger runners provide 45% more flow over stock with no restriction throughout the RPM range

Ready to support over 650 HP of flow

Dyno proven quicker spool times

Removes restriction of front cylinders as seen on stock manifolds, equalizing cylinder pressures

Port matched to turbocharger turbine housing (Unlike OEM Manifolds)

Thick wall durable High Sil Steel resists warping without cracking

Dyno proven gains on completely stock truck of 12 RWHP 18 RW ft-lbs with massive area under the curve

Users can expect exponential further gains when matched with other performance products pushing flow past the stock manifold abilities or in combination with Custom Tuning

Users can expect 1-2 MPG fuel savings with improved manifold port geometry

Applications:

2013-2016 F-150 EcoBoost 3.5L

2015-2017 Ford Expedition

2015-2017 Lincoln Navigator

Ford OEM Manifold Numbers:

BL3Z-9430-B

BL3Z-9431-B

Included In The Kit:

– 1 x    Performance Drivers Side Manifold

– 1 x    Performance Passenger Side Manifold

– 16 x  W712244-S300 – Manifold Stud F150 3.5L

– 16 x  W701706-S440 – Grade 10 Locking Manifold Nut

– 1 x    Install Manual

Note: This kit does not come with new OEM manifold gaskets or turbine housing gaskets, both of which are recommended for installation.

OEM Gaskets & Hardware Required:

1x BL3Z-9448-C 2011+ DS F150 3.5L Manifold Gasket (L / DS)

1x DK4Z-9448-A 2011+ PS F150 3.5L Manifold Gasket (R / PS)

2x BL3Z-6N652-B 2011+ F150 3.5L Turbo Oil Drain Gasket

2x BL3Z-9450-A 2011+ F150 3.5L DownPipe Gasket (Not required unless separated)

6x W715673-S900 2011+ Turbo Mounting Bolt F150 3.5L

4x W716667-S900 2011+ Downpipe Stud F150 3.5L (Recommended)

4x W520514-S440 2011+ Downpipe Nut F150 3.5L

4x BC3Z-6A968-C 2011+ Ford Jiffy-Tite Coolant Fitting (Highly Recommended)

1x CL3Z-9450-B 2013-16 F150 3.5L Turbine Housing Inlet Gasket (L / DS)
1x CL3Z-9450-A 2013-16 F150 3.5L Turbine Housing Inlet Gasket (R / PS)

Additional information

Weight 16 lbs
Dimensions 16 x 14 x 10 in
