Stage 1 HPFP-35 Xtreme-DI Upgraded High Pressure Fuel Pump for 2011-2014 F150 3.5L EB 001-35

2011-2014 F150 3.5L EB Gen Xtreme Diesel Performance: HPFP35 22% 200 bar 500/450 E85

5 Star Tuning is proud to offer the best High Pressure Fuel Pumps (HPFPs) on the market!

The time has come to take your Ecoboost to a new level with Xtreme-DI’s High Pressure Fuel pump. The XDI-HPFP-35 is precisely what you need if you are looking to run larger aftermarket turbos or make use of the performance enhancing enthanol blends like E85.

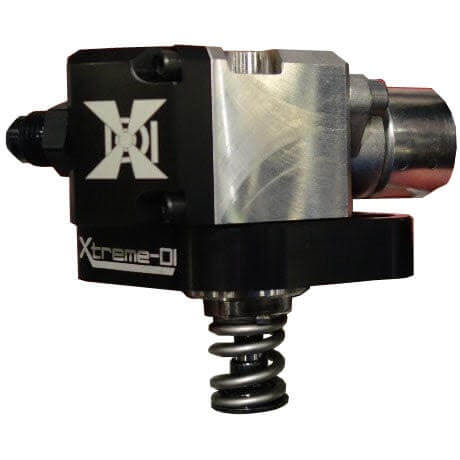

Xtreme-DI High Pressure Fuel Pump – XDI-HPFP-35

Maintaining fuel pressure is the difference between blowing a motor and not. When fuel pressure drops, air fuel ratio goes lean.

XDI gives us the difference we have been searching for.

E85, aftermarket turbos, built motors, high horsepower…

If you any of these are on your mind, then you need an upgraded high pressure fuel pump.

XDI-HPFP-35 provides a 35% increase

over the factory high pressure fuel pump. If that isn’t enough, they offer the XDI-HPFP-60 as well.

Injection Pressure Comparison for Ford F150 3.5L Ecoboost V6:

• OEM: 150bar / 2150psi
• XDI-HPFP-35: 200bar / 2900psi

Specifications:

• Application Maximum Rail Pressure: 200bar / 2900psi
• Fuel Compatibility: all known fuels, all Ethanol blends
• Electric Connector: Bosch Compact 2-pin
• Driver Profile: OEM
• Mechanical Data Geometric Volume: 1.58cc / rev (depending on cam lobe)
• Maximum Flow Rate: 200LPH (depending on cam lobe)
• Housing material: stainless steel hard coated
• Aluminum O-Ring material: Viton
• Cam-Lobe: 4×4.4mm (same for 2.3EB Mustang and Focus RS)

SKU: XDI-A001-35

NOTE: Tuning is recommended with this upgraded high pressure fuel pump. XDI HPFP’s are custom built and can take 6-8 weeks to ship.



Warning: Competition use only. This part is intended and designed for competition use only and should not be installed on vehicles that are driven on public roads and/or high ways. Not legal for sale or use in California.
