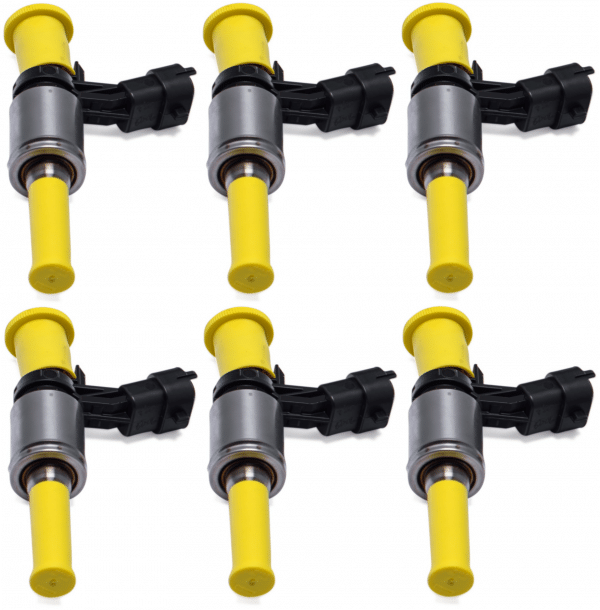

XDI DI Fuel Injectors for Gen 1 & Gen 2 F-150

Ecoboost 2.7L

XDI SKU: XDI-i007-15

Application/Fits:

• 2015 2016 2017 2018 2019 2020 Gen 1 and Gen 2 Ford F150 2.7L Ecoboost

5 Star Tuning is proud to offer the best Direct Injection Fuel Injectors on the market. These completely XDI manufactured and tested DI-Injectors are designed for the 2015-2020 Gen 1 and Gen 2 2.7L Ecoboost series engines. These injectors provide the required fuel flow for high horsepower applications without the need for auxiliary fuel systems. They are based on the original Bosch injector, making them a perfect drop in solution. Most of the ECU Injector characteristics stay the same. Each Injector gets tested by XDI at 100bar and 200bar on OEM testing equipment. Every set gets flow matched to within ±1% at 100bar and 200bar fuel pressure. Testing on several fully instrumented engines has shown unmatched results for cylinder distribution, stability, and repeatability at pressures up to 3200psi. Offsets and current driver parameters stay the same and required tuning changes are minimal. These injectors are E85 compatible.

Features:

• 100% true fitment, no adapters needed like on the DW
• 100% compatible with ECU driver, because they are based on the OEM Bosch Core.(the DW is based on F150 Denso core)
• OEM spray pattern, perfect idle, cold start and drivability
• Runs stable at up to 220bar, linear and no misfire
• Just one label in ECU needs to be changed (injector slope over rail pressure)
• Tested and flow matched at three different points (08ms-20bar / 10ms-100bar / 6ms-200bar
• Flows 2000cc/min at 100bar, the DW just flow 1700cc
• Flows 2900cc/min at 200bar, the DW doesn’t run at all at 200bar
